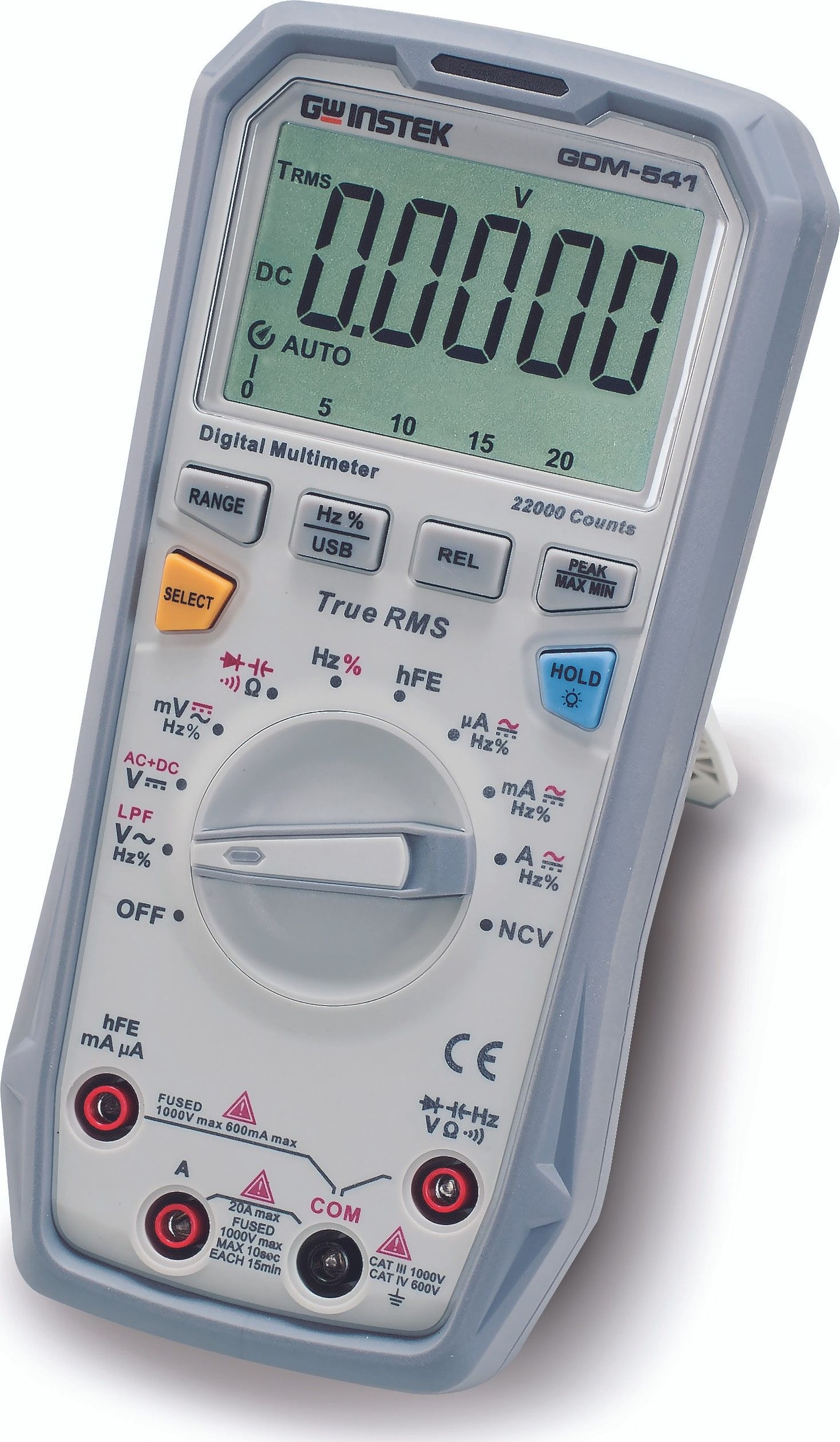

Product Description

Features:

• Auto Ranging (GDM-541/533/532)
• True RMS (GDM-541/533/532)
• Analog Bar (GDM-541/533)
• USB (GDM-541/533)
• Display Backlight (GDM-541/533/532/531)
• NCV Function (GDM-541/533/532/531)
• Audible / Visual Alarm (GDM-541/533/532/531)
• AC+DC Voltage (GDM-541)
• LPF ACV (GDM-541)
• hFE Test (GDM-541)

Technical Specification:

• Range: 220.00mV, 2.2000V, 22.000V, 220.00V, 1000V(GDM-541)
• Best Accuracy: ±(0.05%rdg + 5 digits) for GDM-541
• Input Impedance: 10 MΩ (At mV range : 1GΩ for GDM-541
•

• Range: 220.00mV, 2.2000V, 22.000V, 220.00V, 1000.0V(GDM-541)
• 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V
• Best Accuracy: ±(0.8%rdg + 10 digits) for GDM-541
• Frequency Response: 40Hz-10kHz for GDM-541
• Input Impedance: 10 MΩ

DC CURRENT:

• Range: 220.00µA, 2200.0µA, 22.000mA, 220.00mA, 20.000A(GDM-541)
• Best Accuracy: ±(0.5%rdg + 10 digits) for GDM-541
• AC CURRENT:
• Range: 220.00µA, 2200.0µA, 22.000mA, 220.00mA, 20.000A(GDM-541)
• Best Accuracy: ±(0.8%rdg + 10 digits) for GDM-541

RESISTANCE:

• Range: 220.00Ω, 2.2000kΩ, 22.000kΩ, 220.00kΩ, 2.2000MΩ, 22.000MΩ, 220.00MΩ(GDM-541
• Best Accuracy: ±(0.5%rdg + 10 digits) for GDM-541

DIODE TEST:

• Open Circuit Voltage: 3V (Approx.)
• CAPACITANCE: ±(3.0%rdg + 5 digits)

FREQUENCY:

• Range: 10Hz ~ 220MHz
• Best Accuracy: ±(0.01%rdg + 5 digits) for GDM-541
• Input Amplitude: ≦ 20Vrms

TEMPERATURE:

• Range: -40°C ~ 1000°C / -40°F ~ 1832°F
• LCD DISPLAY: 22000 counts
